Super flexible contourgraph, integrated earthquake and large gantry
Bright spot
NPFLEX
NPFLEX three-dimensional measurement system for orthopedic medical implants and other large samples and aerospace, automotive and precision processing of large components provide super flexible area of non-contact 3 d surface characterization.Data density, resolution and repeatability of the system level far above contact instruments, and thus can be used to supplement the ideal technical or independent measurement solutions.
configurable
hardware
Meet almost all samples, shape or size measurement requirements.
strong
architecture
To adapt to the requirements of manufacturing environment.
automation
Measuring the program
A quick production measurement and analysis results.

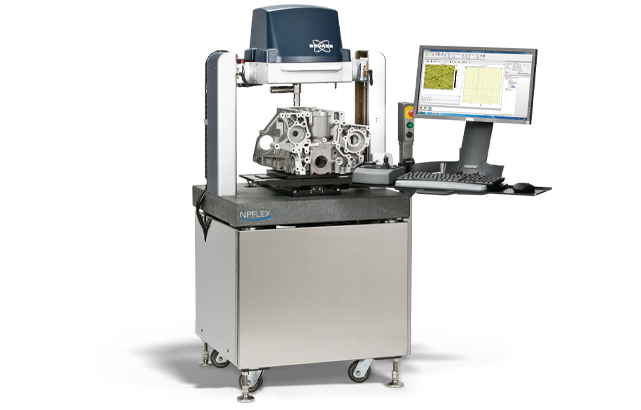

NPFLEX designed to research all kinds of different sizes, different shapes of samples and design, will not damage the samples.The system of white light interference technique is not affected by material type, but for almost all of the surface characteristics of non-contact 3 d measurement.Breakthrough open perspective gantry design provides a measure of the more than 300 degrees, can be due to reasons such as size or direction of the parts before the surface cannot be observed or is difficult to analysis.Below the target with 13 inches (330 mm) space, can be easily observed other kinds of contourgraph of parts can't be measured.
Custom configuration
NPFLEX system provides a variety of accessories, can customize their operation for specific applications.Install pitch Head (Swivel Head), can be performed on wall, beveling and cant repeat study.In addition, there are multiple workbench to choose from:
Equipped with the optional the rotation of the chuck table for fixed clamp
Theta rotating machines, used for sample rotation
Phi rotating machine, used for vertical rotating sample
Phi rolling machine, used for small sample automatic positioning and rotating cylinder
Automatic XY worktable for XY automatic positioning

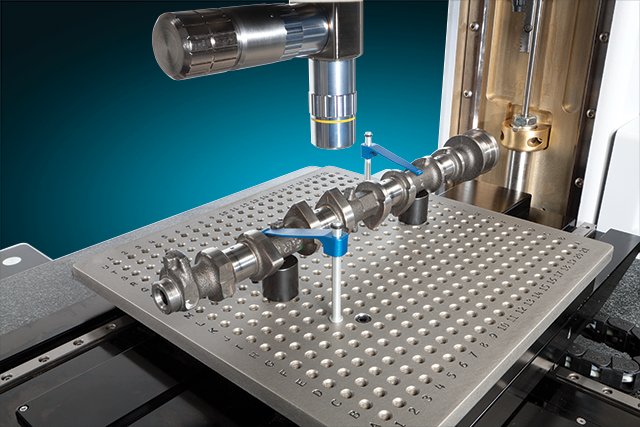

NPFLEX use Phi sample spinning configuration to perform measurements.
Automated process and analysis
Vision64 user interface displayed on 3 d printing parts surface roughness analysis results.
NPFLEX USES the Vision64 software, the software function is strongest in the industry, the most friendly graphical interface to the user.This software has the common Windows function design and function of the toolbar, and intelligent architecture by user-defined executable extensive automation function.Vision64 data analyzer and analysis toolkit using program is suitable for industry analysis and ISO standards.The software on the basis of common manufacturing process, offers a variety of tools, easy custom workflow, and automation.
