BioSpec 47/40 and 70/40
BioSpec equipped with large aperture, 47/40 and 70/40 support you easily complicated experiments set or the study of small non-human primates.
The width of the view
Beyond imagination
Bright spot
Bright spot
40 cm
40 cm large space, can place the largest gradient coils, plug-in PET, peripherals and the maximum size for small nonhuman primates
Super shield refrigeration
Zero and liquid nitrogen and liquid helium evaporation technology to save maintenance costs, prolong maintenance cycle
The stability of
Pulse tube low temperature cooling technology, has the largest physical stability, is to ensure that excellent imaging technology, artifacts and very clear.
BioSpec 70/40 product manuals
download
- Super block of zero liquid helium refrigeration (USR) magnet evaporation and liquid nitrogen technology and save maintenance costs, prolong maintenance cycle
- Machine drive for animals to processing system can be accurately positioning, enhance the experimental efficiency
- The second order and z3 high-power shimming channels to ensure the spectroscopy and MRI of the best performance
- Flexible extension AVANCE NEO electronic device can support both MRI and MRS applications, integration of up to 16 receive channel
- Spectrometer real-time control, to optimize the acquisition parameters during scanning
- High performance of BGA - S - HP gradient coil with the highest rate of gradient intensity, switch and shimming current
- Quick and easy installation of gradient/shimming plug-in, can provide the best gradient for small sample/shimming performance
- Cold transportation to maximize installation process time and cost efficiency
- For mice and rat to provide a complete rf coil combination, including the head, brain, heart, body, light genetics, arterial spin labeling of coil, up to 16 channels multi-channel rf coil, and X - nuclear.
- All key components (software, magnets, gradient, spectrometer, rf coil) of internal development and production to ensure the best performance and short maintenance time.
application
Reward addiction model in rats
Reward/addiction rats brain structure based on MEMRI activation patterns of 3 d map shows the fed chips (red) and the control diet (blue) caused by the significant changes.These changes reveal the human preference for food of high quantity of heat.Image: Germany, el lang root, el university lang, A Hess, T Hoch

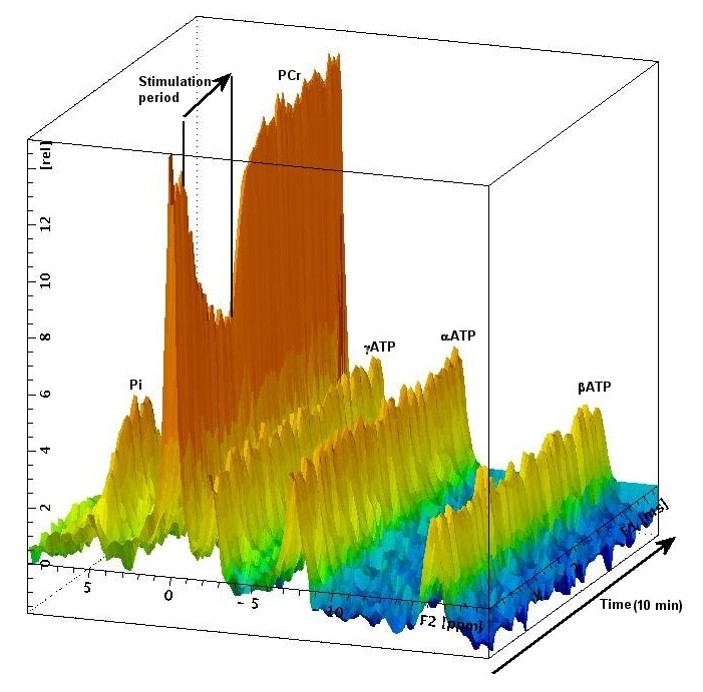

The rat dynamic 31 p wave spectrum analysis of the calf muscles
In electrical stimulation during and after 10 minutes record of calf muscle of rats in 31 p wave spectrum, PCr after motion recovery rate measure mitochondrial oxidative ability.Image: Basel, Switzerland, novartis, Gerard, C P Allegrini

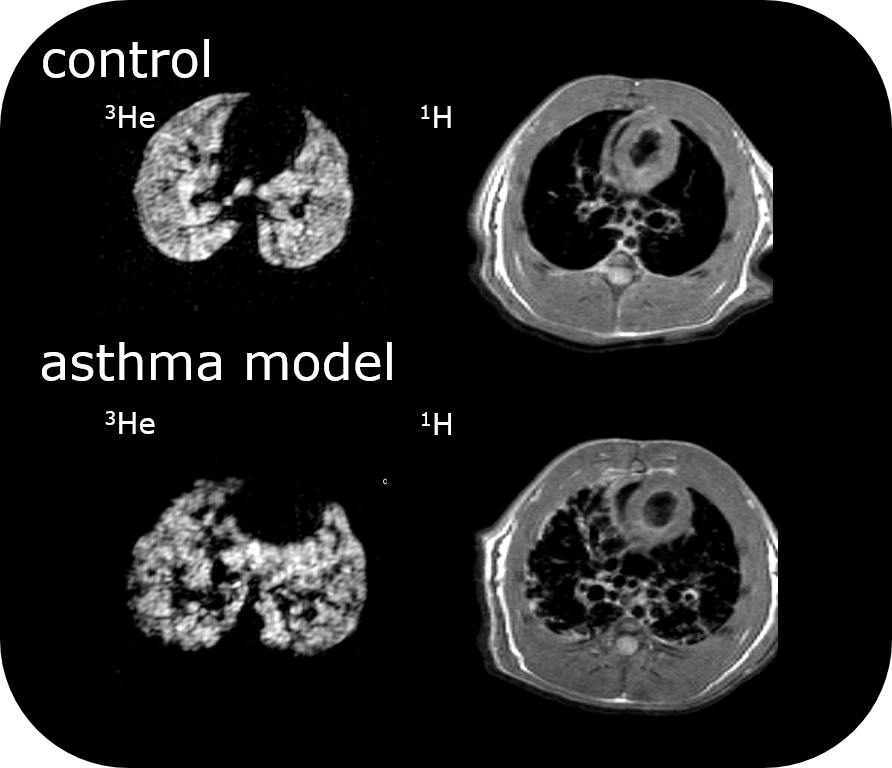

3 he hyperpolarization of asthma model rats
3 he and 1 h image shows the asthma rat lung in control and ovalbumin simulation of obvious difference.Image: Sweden Molndal, astrazeneca, J Pesic, L Olsson
Technical parameters
magnets
| Field strength | 4.7 Tesla |
| The aperture width | 40 cm |
| Missing field uniformity (220 mm) : | Plus or minus 10 PPM |
| Magnet technology | Zero evaporate liquid helium, nitrogen free technology, super shield refrigeration (USR) superconducting magnet, save maintenance costs, prolong maintenance cycle |
The gradient
| Gradient inside diameter |
260 mm |
| The intensity of the gradient |
155 mT/m (230 mT/m with high power option) |
| The largest gradient strength can reach 1000 mT/m |
|
| Switching rate | 280 T/m/s (650 T/m/s with high power option) |
| Active shielding gradient system |
|
| Integrated shimming coil, optimal field uniformity |
ParaVision
ParaVision ® 360:
- Intuitive software package for MRI/MRS multidimensional data collection, visualization, reconstruction and analysis of MRI and/or PET/MR data
- More than 100 validated and can be used at any time of mice and rats in vivo imaging and scanning program operation
- MRI sequence change package contains more than 1000, including the use of the method based on the use of the navigator IntraGate wireless cardiac imaging, cassette or radial readout, and short time echo imaging, such as UTE and ZTE
- All key components (software, magnets, gradient, spectrometer, rf coil) of internal development and production to ensure the best performance and short maintenance time
PET Insert
Can be upgraded to the most advanced PET module, online or as a plug-in, with full vision and accuracy, in the view of all three axis to provide real, uniform submillimeter PET resolution and quantitative level volume.This is because the SiPM technology of continuous crystal detector and the DOI real 3 d precision is equivalent to more than 10 layer pixelated crystal detector.
