3 d software Suite
Brooke's micro - CT solution including our comprehensive internal development of 3 d. SUITE software, used for reconstruction, object detection, visualization and analysis of the internal structure
DATAVIEWER 3 d detection
Three orthogonal projection through concrete samples
- In the form of three orthogonal projection image by line or reconstruction
- Smooth, linear and nonlinear gray level transformation, color coding
- Differentiation between the sample image analysis
CTVOX and CTVOL 3 d visualization
Volume rendering 3 d small stepper motor
- Volume rendering, the reconstruction results show for the real 3 d objects
- Create a fly around, or through the object animation
- Production sections
- Adjust the color and transparency
- Surface rendering model export to the STL format 3 d printers and 3 d CAD software
CTAN 3 d image analysis

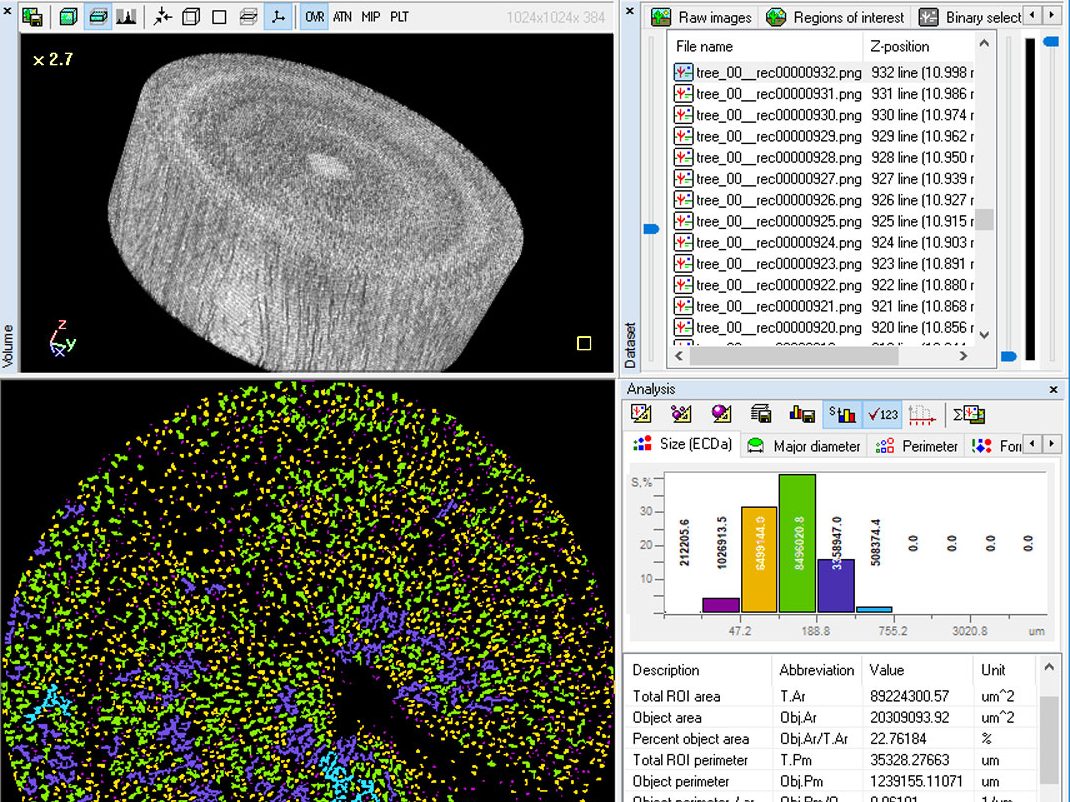

Tree porosity analysis
- Easy to handle large data sets
- Density analysis
- Opening/closing hole porosity
- 3 d distance and Angle
- The thickness and the degree of separation
- Interested in a variety of tools, used to select area
- Various threshold method, morphological operation, and filtering algorithm
- Local direction, thickness and the degree of separation of color coding
- Automatic batch analysis
