Ascend NMR magnet

Combines the key technology to realize the best performance and cost effectiveness

Ascend ™ compact NMR magnet high field NMR spectrum function is extremely powerful, and at the same time to ensure the reliability and convenience.Ascend magnets, magnet technology combines brook a number of proprietary innovation, with excellent performance, and save the running cost.Ascend magnet design adopts advanced superconducting technology, can design the smaller magnet coil, significantly reduce the physical size and magnetic stray field spectrometer.Therefore, Ascend magnet is easy to install, easy to operate and cost-effective.

The best performance

• Unique joint technology, to achieve the lowest field drift and excellent stability of magnetic field
• Advanced field technical support the highest magnetic field uniformity
• External interference suppression (EDS) mechanism, external magnetic field interference can eliminate up to 99%
• Cryostat, thermal efficiency is good, can reduce consumption of refrigerant
• Provide a high-performance vibration isolator

Minimum break

• Easy to location, prepare a much lower cost
• Due to the smaller size and weight, it is more convenient to transport and install
• Reduce the laboratory of physical space and covers an area of a magnet
• Reduce the claim to the laboratory floor height

Optimized shimming system of room temperature Ascend magnet and brooke, NMR probe, automation equipment and refrigeration equipment, matching of a high-performance NMR spectrometer system, can be used for structural biology, small molecules and/or materials research applications.

Brooke Ascend magnet has two kinds of size, the standard room temperature chamber for 54 mm in diameter, cavity magnet cavity magnet for 89 mm wide.

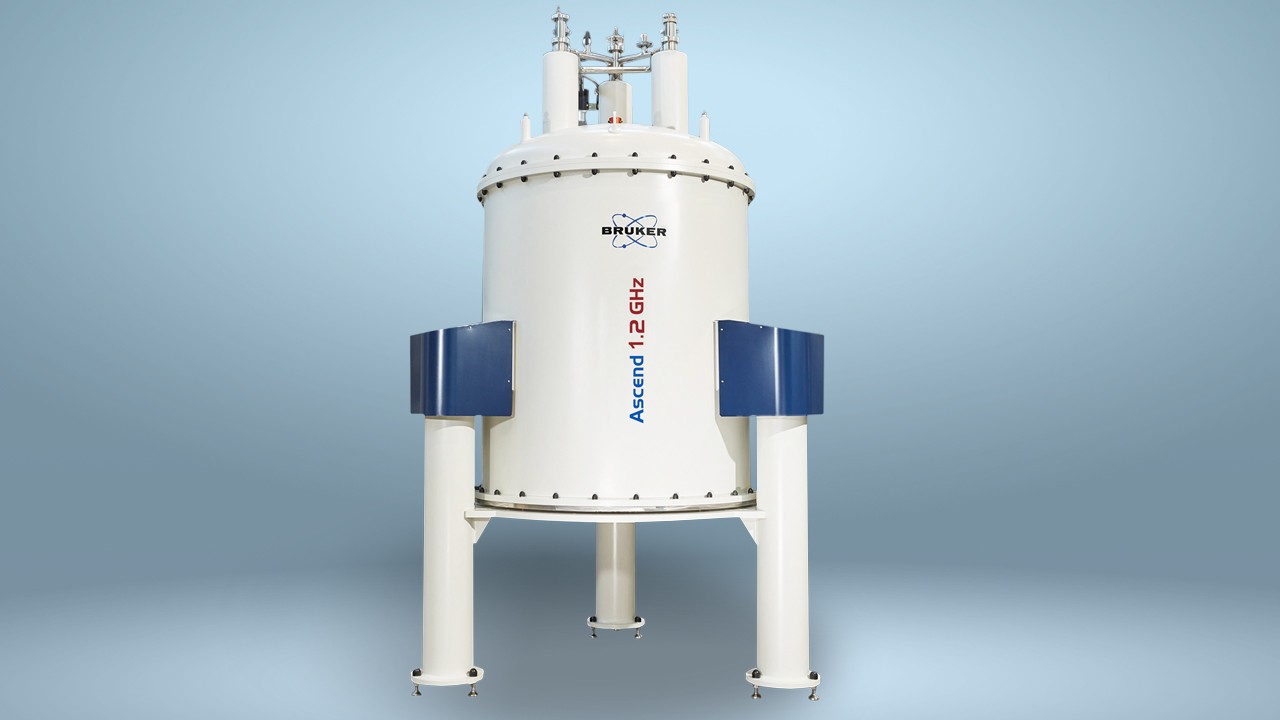

The emergence of the superconducting coil cutting-edge technology, magnetic field intensity can be achieved the highest 1.2 GHz.Advanced superconductors can also design the extremely compact NMR magnet, plus by active block to minimise stray field, the NMR system needs to be placed in the limited space of laboratory is a key advantage.

Brooke's external interference suppression (EDS) system can provide an external magnetic field interference shielding efficiency, when the NMR spectrometer need to install in a challenging environment, it is an ideal choice.Brooke for high current and high magnetic field joint proprietary joint technology can guarantee the lowest drift rate.
