G6 LEONARDO

Bright spot

PPB (ng/g)

Detection limit of hydrogen and nitrogen

For hydrogen nitrogen analysis of high thermal conductivity detector, makes the detection limit reached parts per million orders of magnitude (assuming the sample amount is 1 g)

> 3000 ° C

When analyzing the refractory sample, through the use of advanced electrode furnace temperature can reach more than 3000 ° C

Water-cooled furnace electrode with FusionControl for accurate temperature control.SampleCare ™包含一个集成的、免维护的样品容器，可使样品免于不必要地加热。

0 l/min

The consumption of compressed air

Move lower electrode, by EZDrive make don't need additional work gas, and ensure the crucible and maintain the best contact between the electrode, so as to realize higher safety and reliability.

G6 LEONARDO - economic, high quality, by the inert gas fusion method for process control

Electrode Furnace with SampleCare and FusionControl

Oxygen (O), nitrogen (N) and hydrogen (H), these three kinds of nonmetal elements, determines the quality of all metal material, mechanical properties and service life.And the composition of different metal alloys is, in the whole process of raw material to finished product from the production chain, oxygen, nitrogen and hydrogen content of great changes are sometimes.Even if the content is extremely low, oxygen, nitrogen and hydrogen on the properties of ceramic materials has very important influence.

G6 LEONARDO is inert gas fusion method (IGF), need high temperature melting sample material in the graphite crucible.Because the melting sample, total oxygen, total nitrogen and total hydrogen can be extracted into the inert carrier gas, so the principle is often referred to as gas melting analysis (GFA) or melt extraction.

Smart Molecule Sequence ™ to ensure the reliability of the results.Is the purpose of IGF analysis to the absolute accuracy of determination of trace amounts of oxygen, nitrogen and hydrogen in the sample that the content of three kinds of light elements.It is for this reason, our G6 LEONARDO use Smart Molecule Sequence ™, with proven scientific principles, with the absolute accuracy of 1:1, emit directly measured by the sample gas, and provides the reliable results.It can also in the case of no additional chemical determination of oxygen content, and argon gas instead of helium as a carrier gas, to ensure the high reliability and low cost of ownership.

The key advantage:

The samples FusionControl ™ : to continue to contactless temperature measurement
Used for analysis of IGF SampleCare ™ contains EZDrive, water-cooled sample container, high capacity of dust collector, followed by effective online particle filter
Smart Molecule Sequence ™ : direct measure undoped and by reference channel of advanced detector all gas emissions.
FUSION. ELEMENTS ™ : Alaska platform based on the brook, to meet the needs of the future, easy-to-use software

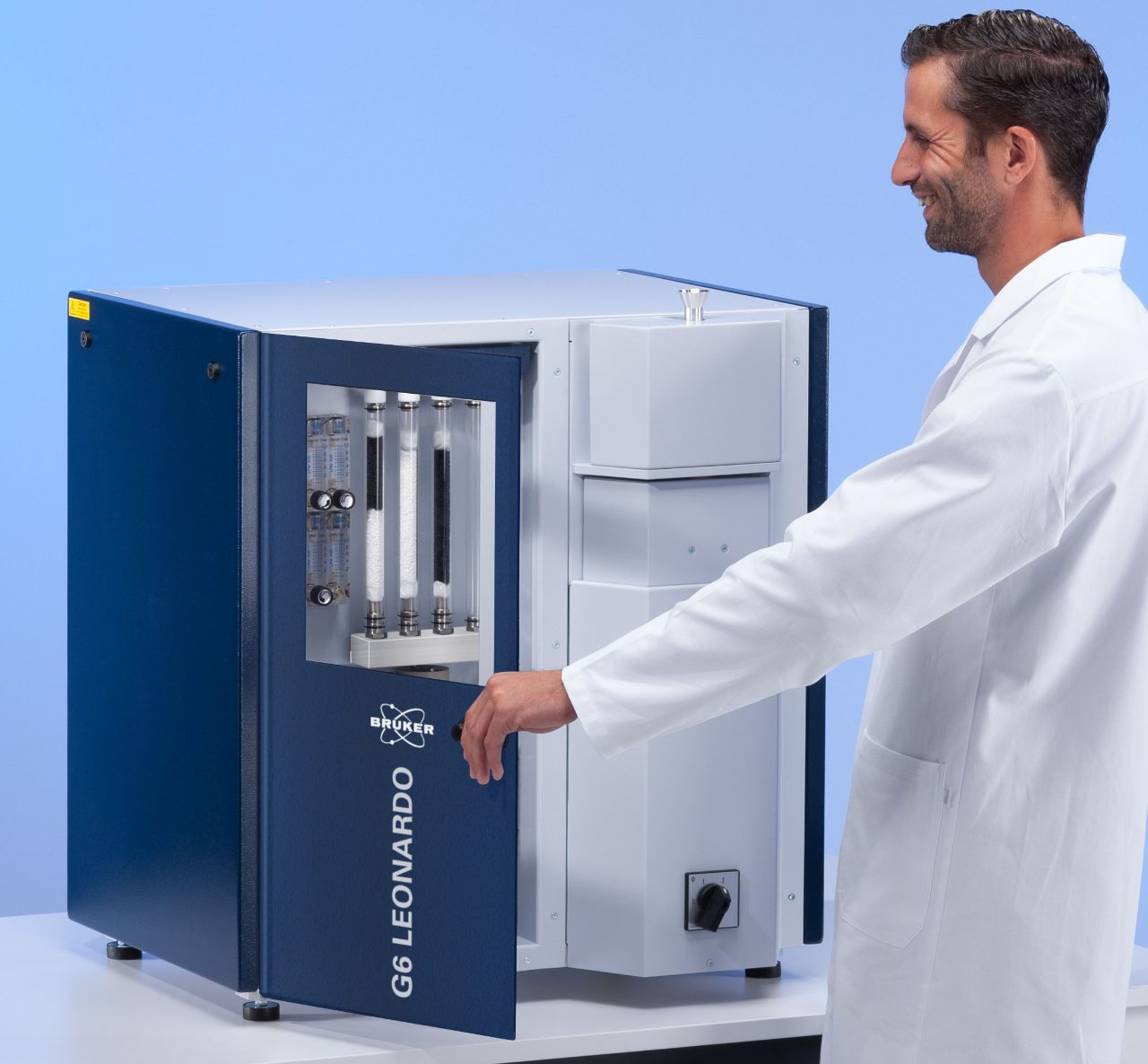

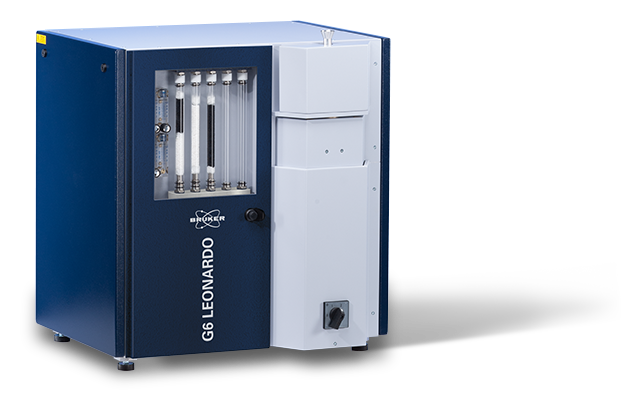

G6 LEONARDO - high precision, compact, easy to maintain the O/N/H analyzer

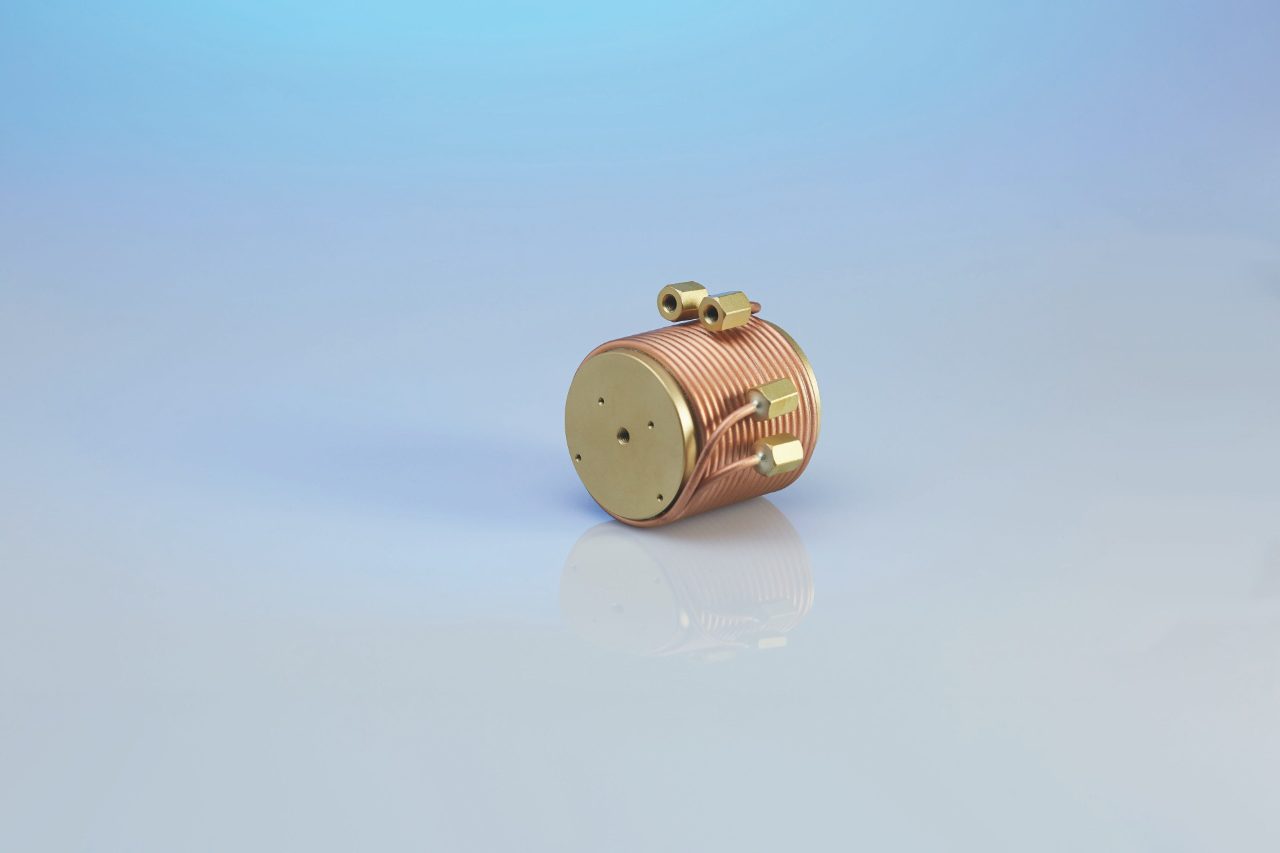

With integrated heat exchanger, double channels thermal conductivity detector

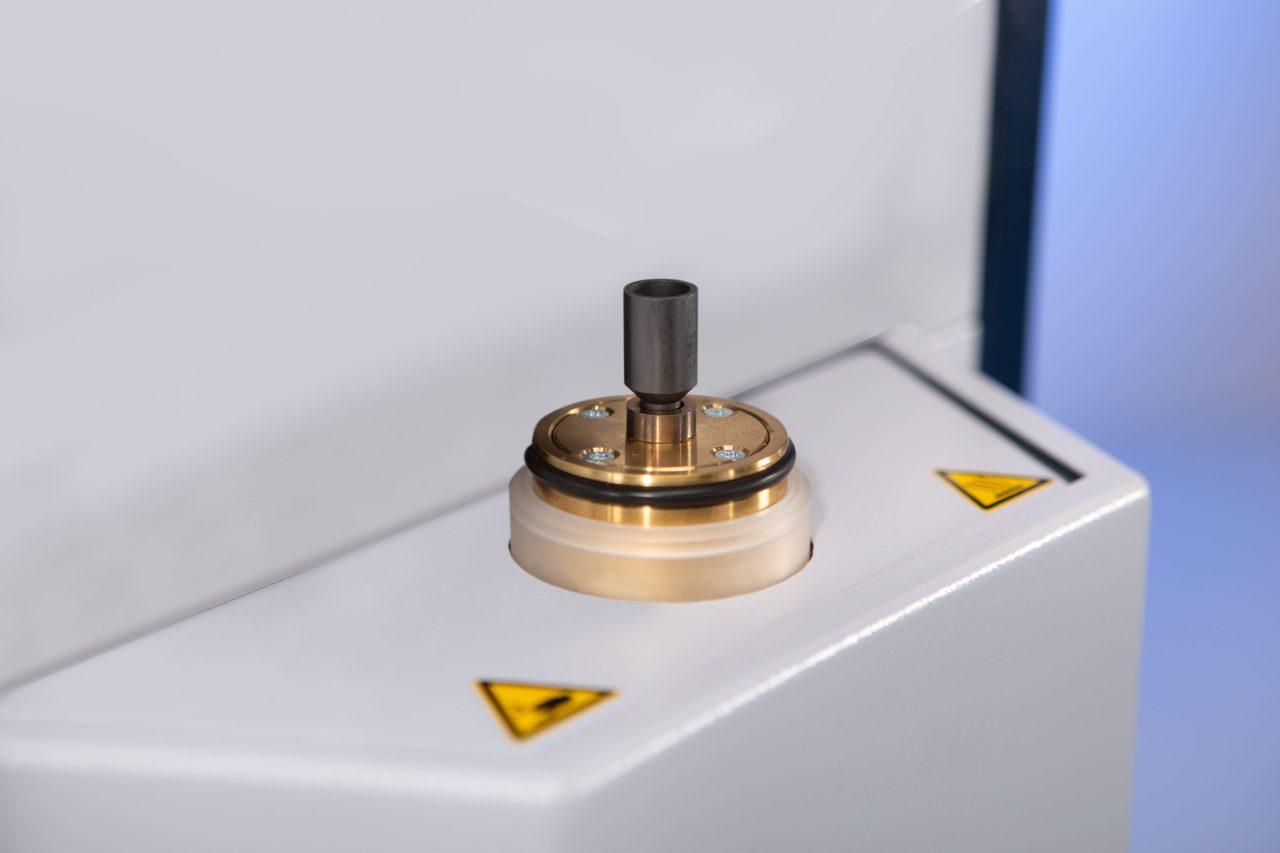

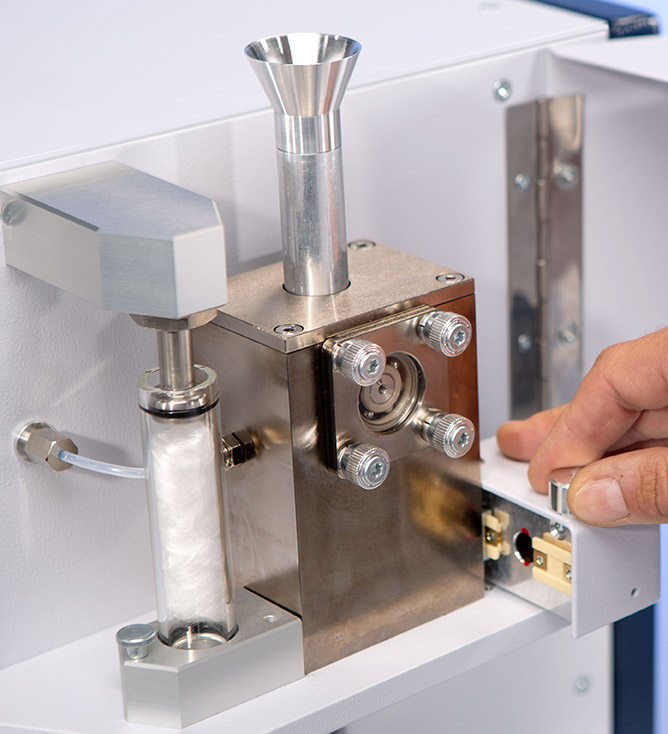

The lower electrode EZDrive

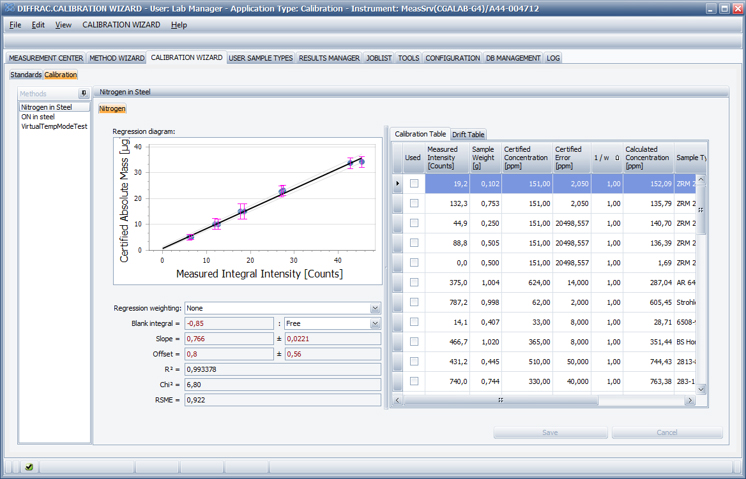

FUSION. The ELEMENTS of the calibration wizard

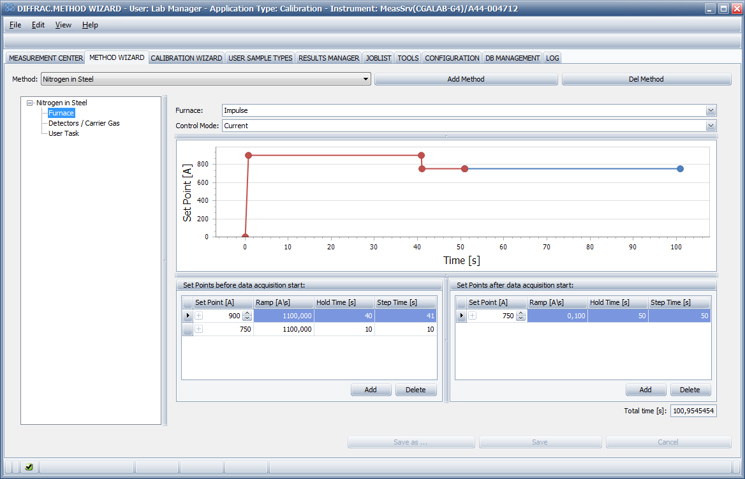

FUSION. The ELEMENTS method of the wizard

advantage

The function of simple and easy to use

Because the SampleCareTM, contain FusionControl Smart Molecule SequenceTM, and readily available, calibration, suitable for many industrial applications in advance of analysis methods, G6 LEONARDO is primary metal production and processing, ceramic and powder metallurgy process and quality control of the best choice.

application

G6 LEONARDO application

Technical parameters

G6 LEONARDO technical parameters

	specifications	advantage
The sample The sample type	Inorganic, dry, any form or shape	flexible
The sample size	Transverse section size 8 x 8 mm (lump, flake, needle, particles), different sample container, can meet the needs of special applications	Different sample materials
The detector Oxygen, nitrogen and hydrogen	Non-dispersive infrared absorption method to measure CO, no moving parts, has the reference beam and airborne linear multirange detector, with reference channel and adjustable gain amplifier thermal conductivity detector	Reliable, free maintenance, no drift, reliable, adjustable range and no drift
Melting pot	Take FusionControl water-cooled furnace electrode	Analysis of solid samples of refractory at high temperatures, can accurate temperature control
SampleCare ™ Particle filter EZDrive sample container	The lower electrode through reliable electronic movement module to move Rotary sample containers are integrated into the water-cooled furnace module Behind the high capacity of dust collector is online particle filter	Strong and durable, cost savings, need not work gas. Limited torque of the automatic reset to ensure that the crucible in the best state: electrode contact, ensure the safety of the crucible, crucible, and operators. Before the analysis to protect sensitive samples heat or inhaled hydrogen consumption. Measuring particle sample without sample tank, avoid congestion. Maintenance and protection makes the analysis results are more stable
The cooling water	4 l/min, the water pressure of 3 bar	Each ordinary tap water pipes, water design, solenoid valve, are also applicable to the cooler
The carrier gas	Argon gas (O, N), helium (O, N), nitrogen (H);Each carrier gas purity reached 99.995% (analysis of trace elements, carrier gas purity should be 99.9990%)	Flexible choice of carrier, the effect is not affected
Noise emissions	Peak < 55 dB (A)	Enjoy the quiet
The calibration	Single point and multi-point calibration, advanced weighted algorithm, error fusion line and scope	Easily and reliably all calibration range at the same time
The reagent	Magnesium perchlorate Sodium hydroxide carrier Copper oxide, rare earth base model (N) Model of Schuetze reagent (H)
The power supply	VAC (+ / - 10%), 400-480, 50 to 60 Hz, 32 A, 7 kVA, single phase with neutral or bipolar disorder, grounding line 230 VAC (+ / - 10%), 50 to 60 Hz, 64 A, 7 kVA as an option	Compatible with all over the world power and the current configuration
The available models	Single element or elements, N, H, O ON, OH	Ideal tool of process and quality control
Size and weight	71 x 66 x 78 cm (deep x width x height), ~ 145 kg	Compact and easy to maintain
	*) depends on the configuration

webinar

For more information

G6 LEONARDO resources

Brochure and catalogue

G6 LEONARDO: inorganic sample is analyzed with inert gas fusion method

support

Service and support

We offer:

Professional senior technical personnel to do fault professional technical support, isolation and solve the problem of hardware and software
Network remote service, providing diagnosis and application support
Fusion reality support - virtual engineers in your side,video )
According to your request to schedule maintenance
Customer site maintenance, maintenance services
Spare parts delivery will be within one working day/the world needs a few working days to complete
Installation qualification and operational qualification/performance verification of compliance services
Site planning and relocation
Find next A training course
